PM-5

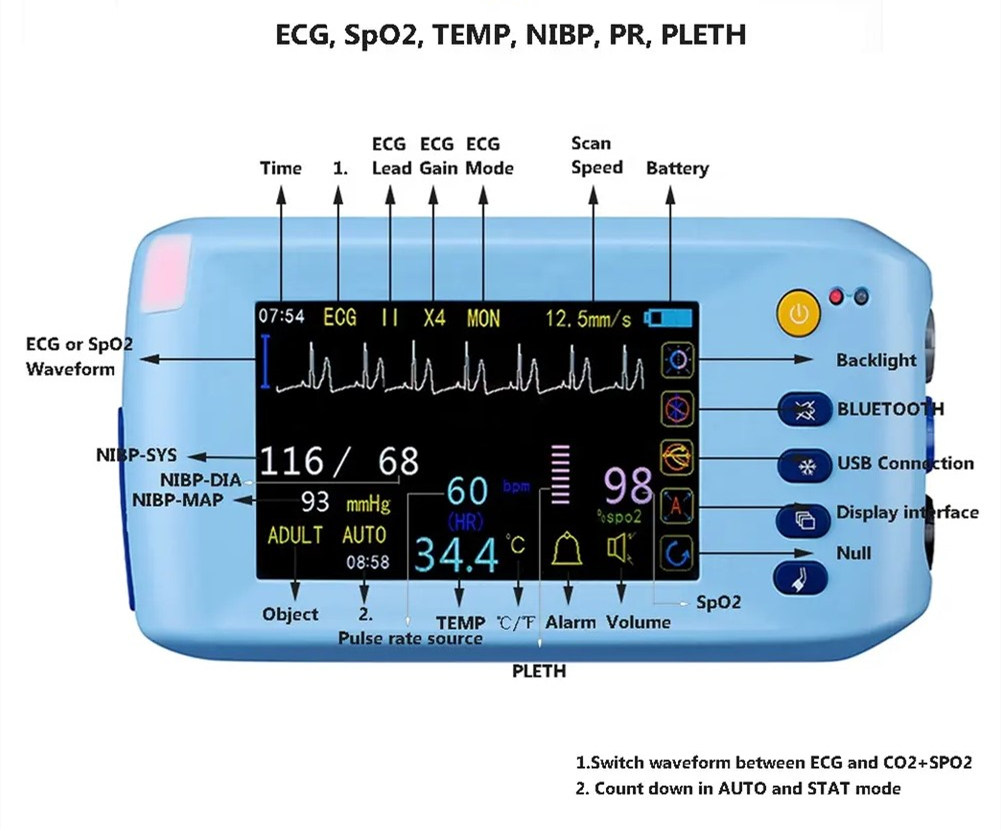

Patient Monitor
5" Color LCD with touch screen
Storage/Review 129 hour and 3888 group trend data
Long time monitoring and sleeping monitoring
USB and Bluetooth data upload
Built-in rechargeable Li-battery, up to 15 hours running time
Horizontal and vertical display selectable
Big font screen interface is easy to observe
Backlight can be adjusted
Technical Specification:
ECG
Input: 3-lead ECG cable, standard AAMI cable connector
Lead selection: I, II, III
Gain selection: x1, x2, x4, x8
Sweep speed:12.5mm/S, 25mm/s, 50mm/s
Bandwidth:0.5Hz-40Hz (for monitor or operation)
0.05Hz-100Hz (for diagnosis)
Calibration signal:1mV
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measure range:20bpm-300bpm
Accuracy:±1bpm
Resolution:1bpm
Alarm mode: Audible and visual alarm
Oxygen Saturation(SpO2)
SpO2
Range:0%-100%
Accuracy:±2%(70%-90%), ±3%(70%-89%),unspecified(<70%)
Pulse Rate
Range:200bpm-300bpm
Accuracy:±1bpm
Temperature
Measuring range:0°C-50°C
Resolution:0.1°C
Accuracy:±1°C
Operation Environment
Temperature:0°C-45°C
Humidity:30°C-85°C(non-condesing)
Power Option
Build-in Li-ion rechargeable battery
3.7V/7200mAH
AC power:100V-240V, 50Hz-60Hz, 5VA
NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring interval in AUTO mode:1,2,3,5,10,15,20,30,60(min)
Measuring period in STAT mode:5min
Measuring type: SYS, DIA, MEAN
Resolution:1mmHg
Over-pressure protectioin: Yes
Dimension
209mmx104mmx47.5mm
Net Weight
655g
Patient Monitor
5" Color LCD with touch screen
Storage/Review 129 hour and 3888 group trend data
Long time monitoring and sleeping monitoring
USB and Bluetooth data upload
Built-in rechargeable Li-battery, up to 15 hours running time
Horizontal and vertical display selectable
Big font screen interface is easy to observe
Backlight can be adjusted
Technical Specification:
ECG
Input: 3-lead ECG cable, standard AAMI cable connector
Lead selection: I, II, III
Gain selection: x1, x2, x4, x8
Sweep speed:12.5mm/S, 25mm/s, 50mm/s
Bandwidth:0.5Hz-40Hz (for monitor or operation)
0.05Hz-100Hz (for diagnosis)
Calibration signal:1mV
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measure range:20bpm-300bpm
Accuracy:±1bpm
Resolution:1bpm
Alarm mode: Audible and visual alarm
Oxygen Saturation(SpO2)
SpO2
Range:0%-100%
Accuracy:±2%(70%-90%), ±3%(70%-89%),unspecified(<70%)
Pulse Rate
Range:200bpm-300bpm
Accuracy:±1bpm
Temperature
Measuring range:0°C-50°C
Resolution:0.1°C
Accuracy:±1°C
Operation Environment
Temperature:0°C-45°C
Humidity:30°C-85°C(non-condesing)
Power Option
Build-in Li-ion rechargeable battery
3.7V/7200mAH
AC power:100V-240V, 50Hz-60Hz, 5VA
NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring interval in AUTO mode:1,2,3,5,10,15,20,30,60(min)
Measuring period in STAT mode:5min
Measuring type: SYS, DIA, MEAN
Resolution:1mmHg
Over-pressure protectioin: Yes
Dimension
209mmx104mmx47.5mm
Net Weight
655g
| Standard Packing List | |
| Color palm patient monitor main unit | 1 pc |
| 3-lead ECG cable ( include surface TEMP probe) | 1pc |
| Adult finger SpO2 sensor | 1 pc |
| Adult NIBP cuff | 1 pc |
| NIBP extension tube | 1 pc |
| PC software CD | 1 pc |
| USB cable | 1 pc |
| AC power adapter | 1 pc |
| The operator’s manual | 1 pc |
