The infrared image intensifier transmits light and infrared mixed wavelength to the skin, and hemoglobin absorbs infrared light, so that the vein vessels on the back of the hand can be clearly displayed, so as to assist the medical staff to check the vein vessels suitable for puncture under the skin, and improve the success rate of vein puncture, which can be used in hospitals, clinics and family transfusion with auxiliary use.

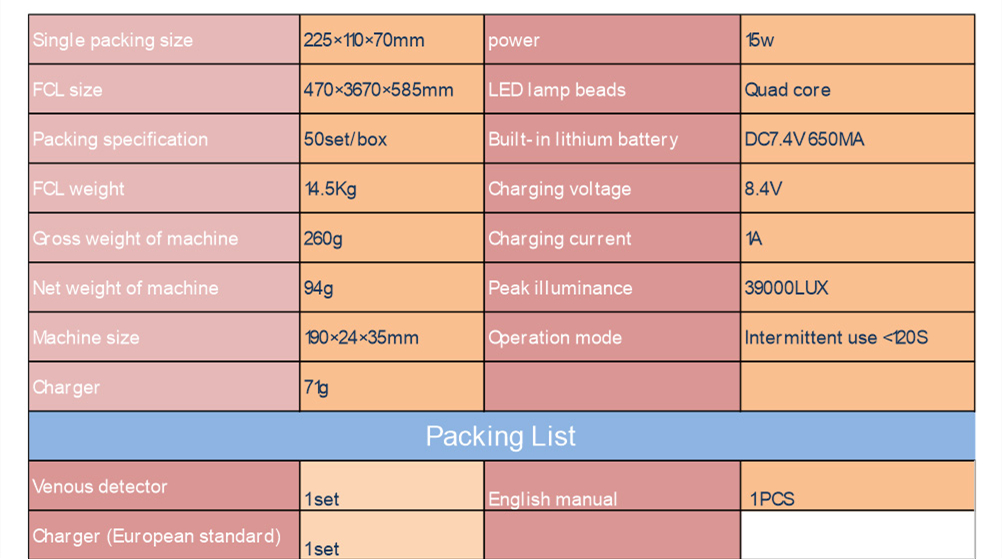

| Technical parameters of infrared venous detector | |||
| Single packing size | 225×110×70mm | power | 15w |
| FCL size | 470×3670×585mm | LED lamp beads | Quad core |
| Packing specification | 50set/box | Built-in lithium battery | DC7.4V 650MA |
| FCL weight | 14.5Kg | Charging voltage | 8.4V |
| Gross weight of machine | 260g | Charging current | 1A |
| Net weight of machine | 94g | Working current | 2.1A |
| Machine size | 190×24×35mm | Operation mode | Intermittent use <120S |
| Charger | 71g | ||
| Packing List | |||
| Venous detector | 1set | English manual | 1PCS |
| Charger (European standard) | 1set | ||
