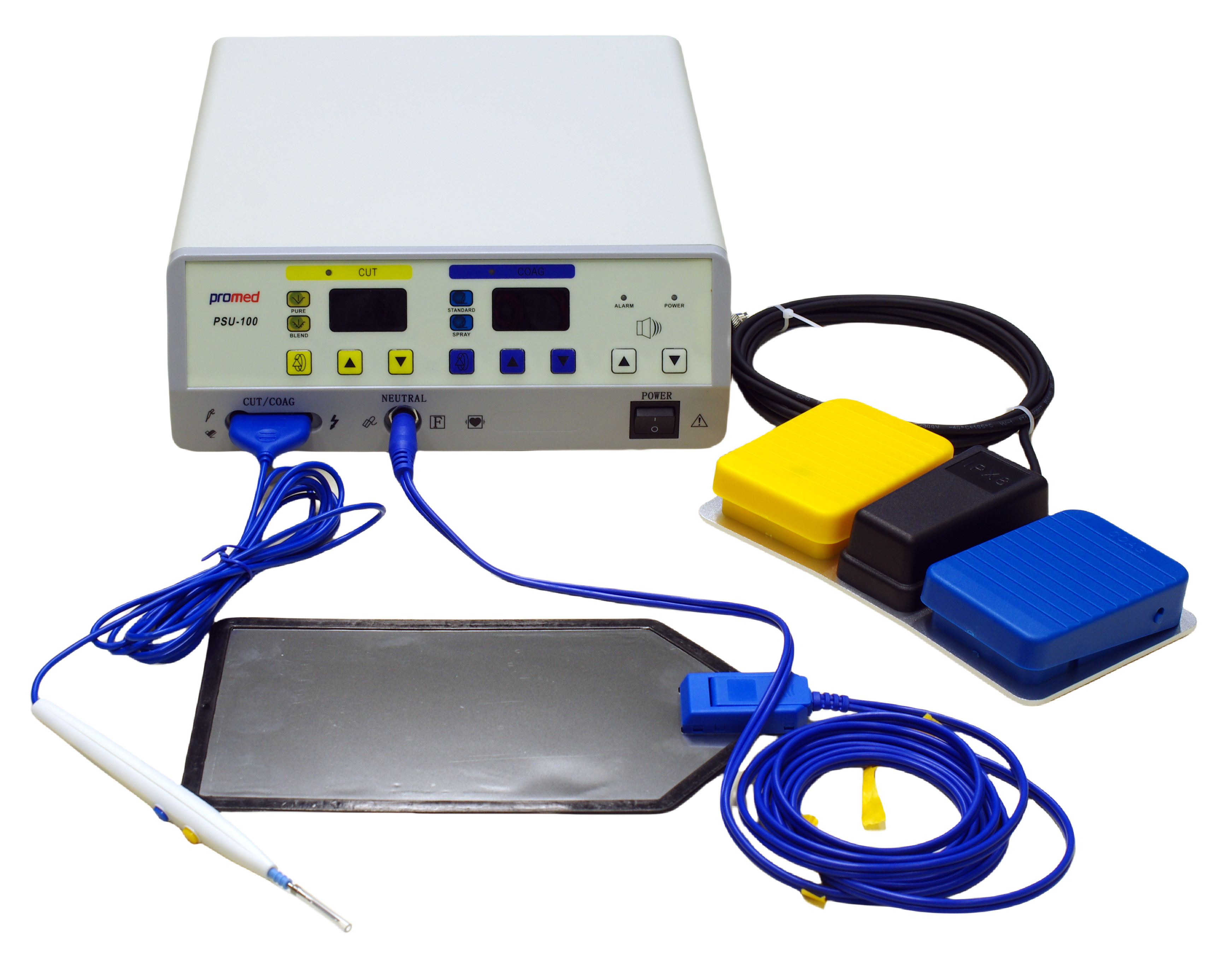

PSU-100
Electrosurgical Unit
1)Excellent monopolar cautery machine with smart & light design;
2)Max 4 work modes: Pure/Blend, Standard/Spray;
3)Return electrode monitoring system to avoid any burnt and damage for patient; 4)Clear working modes indication and easy power control;
5)Minimal sticking & carbonization, reduce the surgery damage;
6)Auto-terminate of power output after 5s to avoid misoperation;
7)Different & Adjustable operation sounds in case of misoperation.
| Work Mode | Frequency | Rated Power | Increment | Form of HF Current |
| Monopolar Cut | 500KHz | 0-100W/400Ω | 5 Watt | Sine Wave |
| Monopolar Blend | 500KHz | 0-70W/400Ω | 5 Watt | Modulate Sine Wave |
| Monopolar Coag | 500KHz | 0-70W/400Ω | 5 Watt | Modulate Sine Wave |
| Bipolar Coag | 500KHz | 0-50W/400Ω | 5 Watt | Modulate Sine Wave |
