PM-12A Plus
Patient Monitor
12.1-inch high-resolution color TET LCD display.
Thinner and lighter in design, convenient and portable for users.

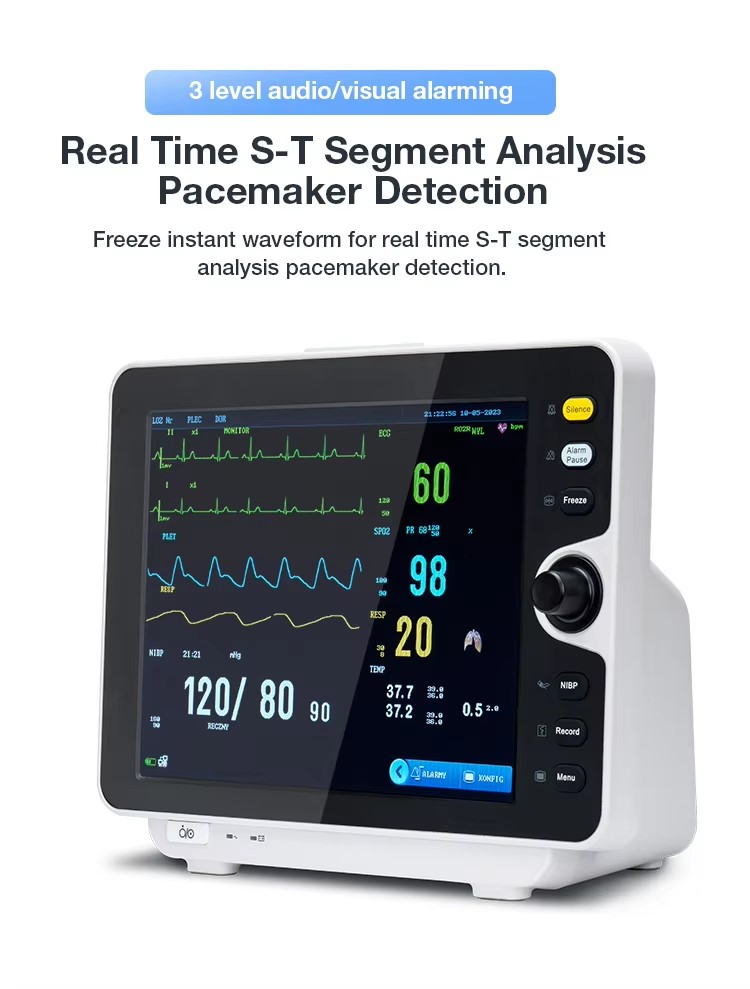

Real-time S-T segment analysis, pacemaker detection.
Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen.
3-level audio/visual alarms.
Efficient resistance to interference of defibrillator and HF knife.
Up to 400 groups NIBP list, 8seconds ECG waveform recall, 1800 groups alarm event records recall
Built-in rechargeable lithium battery, 2-hour working capability.

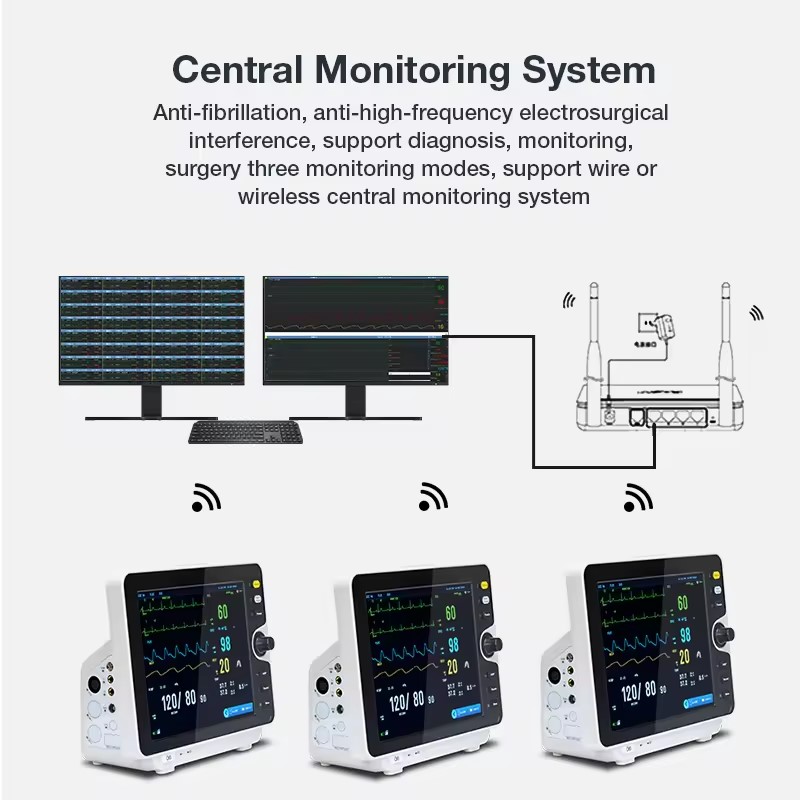

Wireless central monitoring system applicable to ICU/CCU/OR
Size: 12.1 inch
Weight: 5kg
Electrical Specification: 100-240v AC, 50/60Hz,
Max Input Power: 70VA
Battery: 11.1V 2200mAh rechargeable lithium battery
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP
Optional Configuration:
Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer
Package Include:
1 x main unit
1 x Li-Battery
1 x Power line
1 x Earth wire
1 x User’s Manual
1 x Blood oxygen probe (for SpO2, PR)
1 x Blood pressure cuff (for NIBP)
1 x ECG cable (for ECG, RESP)
1 x Temperature probe (for Temperature)
ECG
Input 3/5 wire ECG cable
Lead section I II III aVR, aVL, aVF, V
Gain selection *0.25, *0.5, *1, *2, Auto
Sweep speed 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range 15-30bpm
Calibration ±1mv
Accuracy ±1bpm or ±1% (select the bigger data)
NIBP
Test method Oscillometer
Philosophy Adult, Pediatric and Neonate
Measurement type Systolic Diastolic Mean

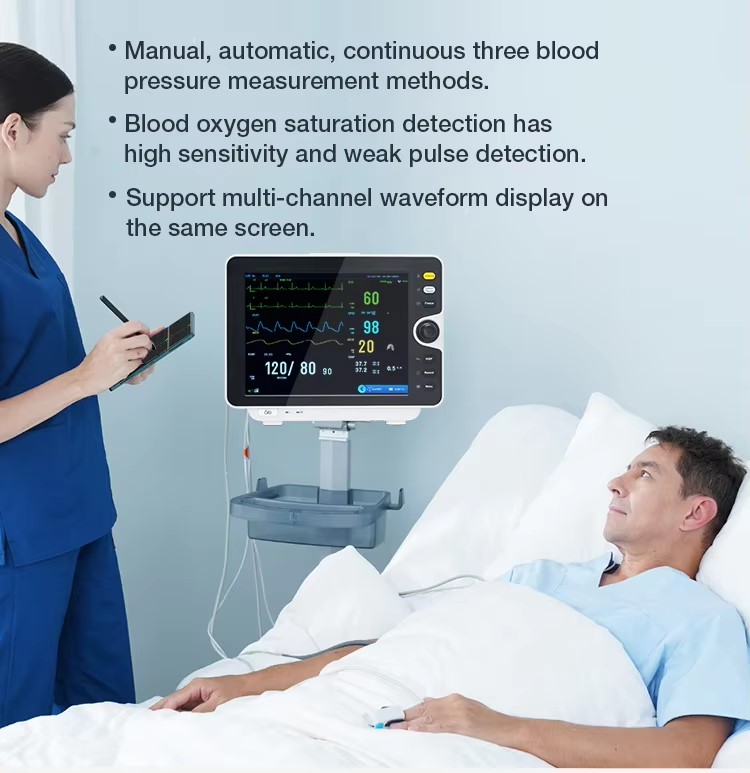

Measurement parameter Automatic, Continuous measurement
Measurement method Manual mmHg or ±2%
SPO2
Display Type Waveform, Data
Measurement range 0-100%
Accuracy ±2% (between 70%-100%)
Pulse rate range 20-300bpm
Accuracy ±1bpm or ±2% (select the bigger data)
Resolution 1bpm
2-Temperature (Rectal & Surface)
Number of channels 2 channels
Measurement range 0-50℃
Accuracy ±0.1℃
Display T1, T2
Unit ºC/ºF selection
Refresh cycle 1s-2s
Respiration (Impedance & Nasal Tube)
Measurement type 0-150rpm
Accuracy ±1bm or ±5%, select the bigger data
Resolution 1rpm
Packing Information
Packing size 37*37*28cm
N.W. 6kg
G.W. 7kg
